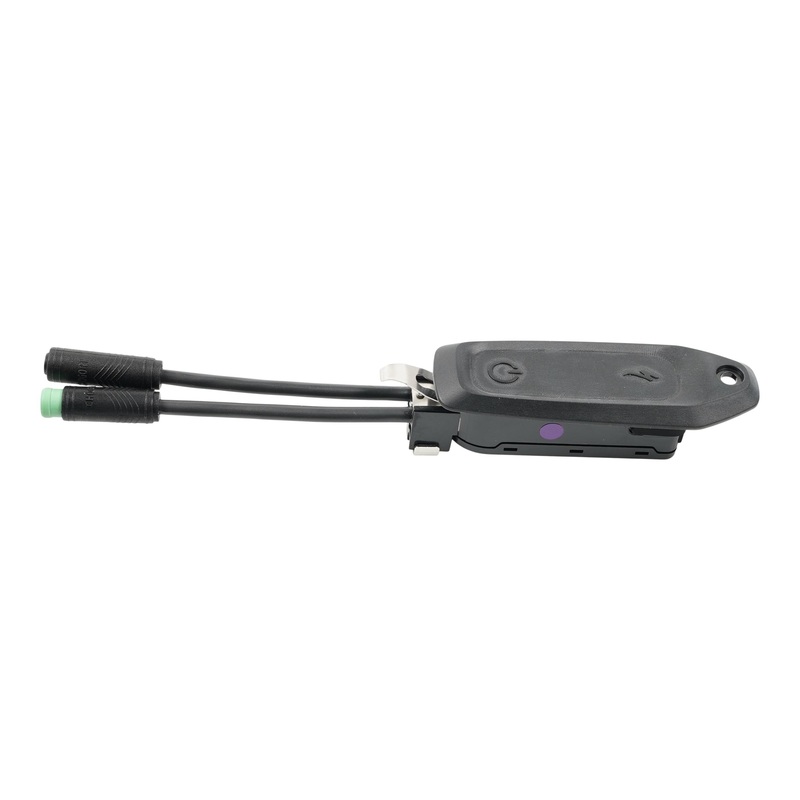

ELE Specialized HMI, TURBO CONNECT UNIT DISPLAY (TCU), WITHOUT BOLT

Turbo Connect Display (TCU) wired top-tube mounted display used on various Turbo model bikes.

• TCU enables rider to turn their bike On/Off via the power button at the bottom of the display.

• Three LED’s at the top of the display show the rider their current assist mode (Eco/Trail/Turbo/Off).

• Rider can switch assist modes by pressing the S button at the top of the display.

• Ten LED bars show the rider their battery charge level.

• Bluetooth functionality enables App connectivity with Mission Control or Specialized App via pairing code (located on back of TCU).

• Ability to display system error codes to the rider to assist in trouble shooting.

• Uses CR 1620 coin-cell battery.

• Replacement T10 torx mounting bolt sold separately – S210500022.
